Tough, universal, accurate - optacom Y-tables - the perfect addition to your measuring machine.
Tough, universal, accurate - optacom Y-tables - the perfect addition to your measuring machine.Y-tables from optacom are universal and flexible, yet tough and highly accurate. So, all in all, typical optacom components.
They are compact and their linear guides and ball screw drives allow a play-free and accurate movement.
The automatic Y-table also features a stepper motor and an optical, incremental and contactless measuring system.

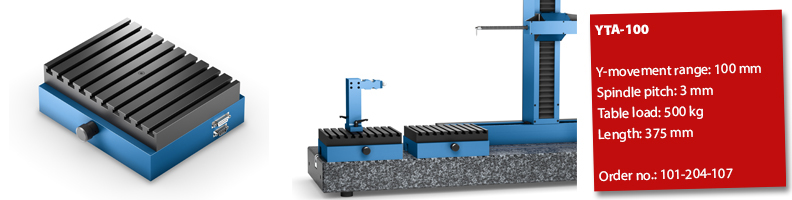

Y-table automatic YTA-100
To automatically search for the highest / lowest point
Technical data
| Length: | 375 mm |
| Width: | 250 mm |
| Height: | 85 mm |
| Y-movement range: : | 100 mm |
| Spindle pitch: | 3 mm |
| Weight: | 17 kg |
| Table load: | 500 kg |
Scope of delivery
- optacom Y-Tisch manual
- T-Nutenplatte universell
- Anschlagleiste
