Are you looking for a multi-functional measuring station that not only replaces your contour, roughness and roundness, but also your form measuring instrument?

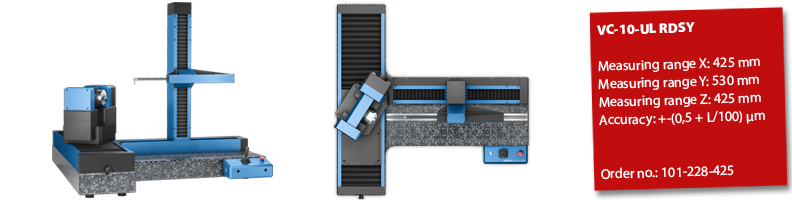

Then you will definitely like our optacom VC-10-UL-RSDY. This extraordinary instrument has 7 measuring axes that does contour measurements automatically or in combination with simultaneous roughness measurement in a perfect manner. Next to these qualities, it does roundness measurements or composed measurements with an integrated swivel table, which is placed on an installed rotary axis. This leads to the fact that even complicated measuring tasks of complex formed objects become very easy. At the probe tip it reaches a true, not only simply calculated resolution of less than 3 nm, and can do this over the entire measuring range.

Technical data

Resolution in X and Z axis 0.002 μm
Resolution at stylus tip 0.003 μm
Measuring range vertical (Z axis) and horizontal (X axis) 425 mm
Measuring range horizontal (Y axis) 530 mm
Measurement system optical, incremental and contactless (X, Z, T, R, S, D, Y)
Accuracy / Straightness +/- (0.5 + L/100) μm / +/- (0.5 + L/100) μm
Maximum measuring force 10 – 150 mN
Measuring speed 0.1 – 2 mm/sec (optimized automatically)
Rotation angle (D axis) / Swivel angle (S axis) 210° / 240°
Measurable gradients 78° upwards; 87° downwards
Dimensions (W x D x H) 1065 x 1060 x 980 mm
Weight 275 kg


  • The most powerfull all-round system for the entire variety of contour measuring tasks
  • Contour and roughness in one measurement with the integrated roughness module
  • Roundness measurements and consolidated measurements with the integrated swivelling table
  • Y-table with 530 mm traveling distance
  • Rotary axis with a rotation angle of 210°
  • Swivel axis with an angle of 240°
  • High-precision linear axis with an integrated drive
  • Body made out of high-strength aircraft aluminium
  • Contact-free, linear incremental measuring systems, absolutely wear free
  • Machine calibration (including stylus tips calibration) in less than 3 minutes

Scope of delivery

  • Measuring machine optacom VC-10-UL-RDSY
  • Industrial PC
  • monitor
  • Mouse and keyboard
  • Windows operating system
  • Optacom Suite 2 complete software
  • Calibration standard with certificate (for machine calibration purposes)
  • Two quick-release fasteners and two stylus tips
