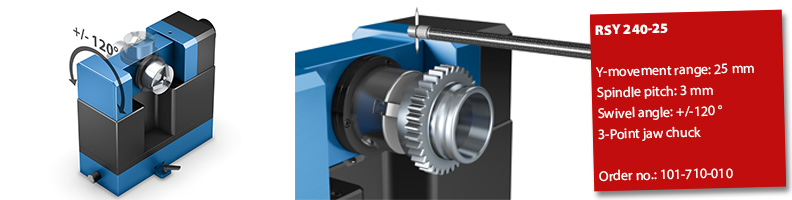

Simply versatile - The rotary-swivelling table for all measuring tasks

The rotary-swiveling table RSY-240-25 from optacom combines the advantages of a round-table with the advantages of a swiveling specimen holder. Therefore, in addition to roundness measurements, this measuring table focuses specially on the automated (and therefore metrologically exact comprehensible) swiveling of components. This means it is possible for the first time to consistently measure, under clearly defined conditions, components with deep grooves and 90° insertions, as well as to capture flatness and roundness values that required multiple measurement passes before, and to combine the results of these individual measurements in an error-free, overall measurement report. Thus, the measurement is entirely simplified and also more precise, resulting in a noticeable decrease of measuring and evaluating efforts.

Like all our components, the optacom RSY 240-25 is ultra precise. The default concentricity is achieved through a mechanical accuracy of 2.5 µm, which can be increased using special chucks to a value below 0.5 µm.
The RSY 240-25 is delivered with a specially developed motorized Y-table with a measuring system and a movement range of 25 mm. This integrated Y-table provides the ability to automatically search for the highest / lowest point and allows the extension of the CNC mode on the Y axis.

Technical data

Length: 365 mm
Width: 145 mm
Height: 255 mm
Chuck diameter: 80 mm
Y-movement range: 25 mm
Spindle pitch: 3 mm
Swivel angle: +/-120°
Weight: 30 kg
Maximum work piece weight: 15 kg


  • Fully integrated in the optacom software
  • Easy roundness measurement
  • Absolute torsion resistant
  • In-Out clamping
  • Swing diameter over granite base of 190 mm
  • Roughness fully measurable on the diameter at circumference
  • Fully CNC programmable
  • Movement controllable via machine console provided with buttons and joystick
  • Three integrated optical, incremental and contactless measuring systems

Scope of delivery
