Information

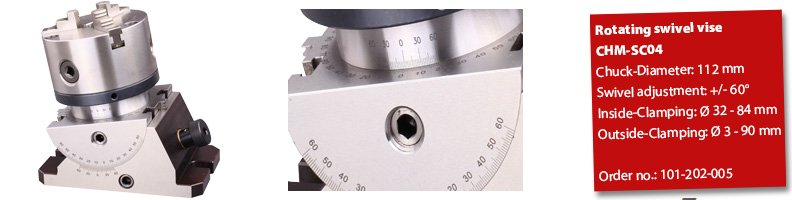

Rotating swivel vise CHM-SC04
- Angle adjustment via a 3‘-Nonius
- Adjustment screw to allow precise angle adjustment
- FForm-fitted clamping in any desired angle position via locking screws
Technical data
| Length: | 178 mm |
| Width: | 75 mm |
| Chuck-Diameter: | 112 mm |
| Chuck-Height: | 58 mm |
| Height: | 181 mm |
| Horizontal adjustment: | 360° |
| Swivel adjustment: | +/-60° |
| Inside-Clamping: | ø 32 - 84 mm |
| Outside-Clamping: | ø 3 - 90 mm |
| Material: | 1.1654 |
| Hardened: | 56-60 HRC |
| Weight: | 13 kg |
