Information

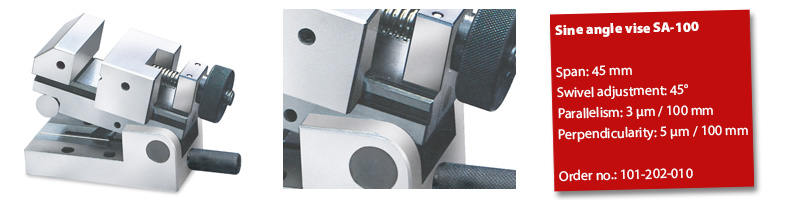

Sine angle vise SA-100
- Made out of high-quality alloy steel, hardened and grinded
- Angle adjustment via gauge blocks
- Clamping system at the lower part allows a secure angle adjustment
Technical data
| Length: | 130 mm |
| Width: | 73 mm |
| Span: | 45 mm |
| Height: | 93 mm |
| Swivel adjustment: | 45° |
| Parallelism: | 3 μm / 100 mm |
| Perpendicularity: | 5 μm / 100 mm |
| Material: | 1.1654 |
| Hardened: | 58-62 HRC |
| Weight: | 6 kg |
